DNA-Protein Interaction Molecular Techniques

Electrophoretic Mobility Shift Assay (EMSA)

• Design and preparation of DNA probes:

1. Determine the DNA sequence of interest and design short DNA probes (typically 20-50 base pairs) containing the putative binding sites for the protein under study.
2. Synthesize the DNA probes or obtain them commercially.
3. Label the probes with a suitable marker, such as a radioisotope (e.g., [32P]) or a fluorescent dye. The label is usually attached to either the 5' or 3' end of the DNA probe.

• Protein extraction and purification:

1. Extract the protein of interest from the desired cellular or tissue source using appropriate methods. This may involve cell lysis, fractionation, or purification steps.
2. Purify the protein using techniques like chromatography to obtain a more concentrated and homogeneous protein sample.

• Binding reaction:

1. Prepare a binding reaction mixture by combining the purified protein with the labeled DNA probe in a binding buffer.
2. The binding buffer provides optimal conditions for the protein-DNA interaction, typically containing salts (e.g., potassium chloride) to maintain the appropriate ionic strength and pH for binding.
3. Incubate the mixture at a suitable temperature and duration to allow the protein and DNA to interact and form protein-DNA complexes.

• Electrophoresis:

1. Prepare a polyacrylamide gel for electrophoresis, typically 4-20% polyacrylamide concentration depending on the size range of the DNA fragments being analyzed. The gel is cast in a suitable gel apparatus, usually with a vertical configuration.
2. Pre-run the gel in an electrophoresis buffer to equilibrate the gel and remove any impurities.
3. Load the binding reaction mixture onto the gel wells, along with appropriate controls, such as free DNA probe and protein alone.
4. Perform electrophoresis under non-denaturing conditions, usually at constant voltage, to separate the protein-DNA complexes from the free DNA probe based on their mobility.

• Visualization and analysis:

1. After electrophoresis, visualize the DNA molecules in the gel. If the DNA probe is radioactively labeled, expose the gel to X-ray film or a phosphorimager screen to detect the radioactive signal. For fluorescently labeled probes, scan the gel using suitable equipment to detect the fluorescence signal.
2. Analyze the gel image to determine the mobility of the protein-DNA complexes and the free DNA probe. The protein-DNA complexes usually appear as shifted bands compared to the unbound DNA probe.
3. Quantify the intensity and position of the shifted bands using image analysis software.

• Specificity controls:

1. Perform additional experiments to confirm the specificity of the protein-DNA interaction.
2. Include competition assays, where unlabeled DNA fragments containing the putative binding sites or mutated versions of the binding sites are added to the binding reaction. This helps assess the specificity of the observed complex formation.
3. Add antibodies specific to the protein of interest to the binding reaction to confirm the identity of the protein-DNA complex.

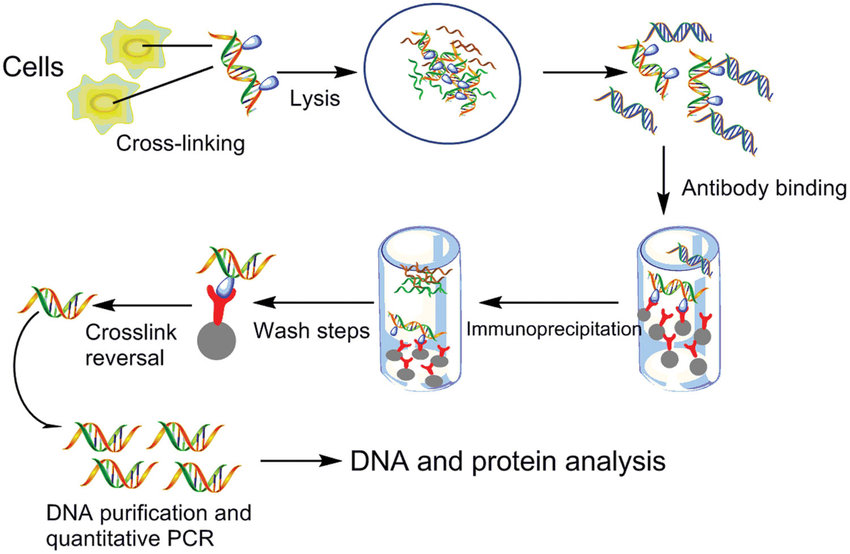

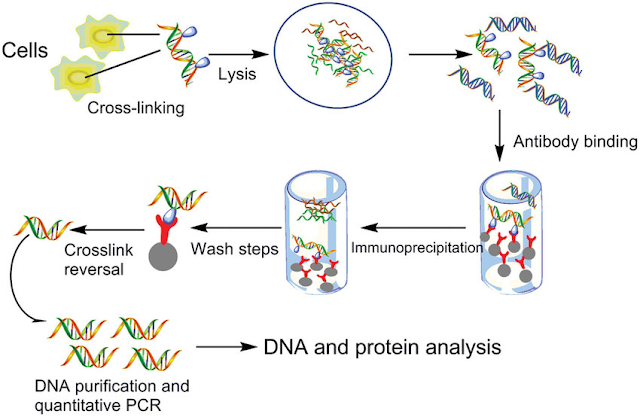

 Chromatin Immunoprecipitation (ChIP)

Cross-linking:

1. Add a crosslinking agent, typically formaldehyde, directly to the cell culture medium or treat intact tissues to fix protein-DNA interactions.
2. Incubate the cells or tissues to allow the cross-linking agent to covalently link proteins and DNA in close proximity.

Chromatin fragmentation:

1. Lyse the cross-linked cells or tissues to release the chromatin.
2. Fragment the chromatin into smaller pieces using methods such as sonication (mechanical shearing) or enzymatic digestion (micrococcal nuclease or restriction enzymes).
3. The goal is to generate DNA fragments of approximately 200-500 base pairs in length.

Immunoprecipitation:

1. Add an antibody specific to the protein of interest to the fragmented chromatin.
2. Incubate the mixture to allow the antibody to selectively bind to the protein-DNA complexes.
3. Capture the antibody-protein-DNA complexes using protein A/G beads or magnetic beads coupled to protein A/G.
4. The beads serve as solid support for the immunoprecipitation process.

Washing and elution:

1. Wash the beads extensively to remove non-specifically bound proteins and DNA fragments.
2. Employ stringent washing conditions to ensure the specificity of the protein-DNA interactions.
3. Elute the protein-DNA complexes from the beads, separating the protein from the DNA.

Reversal of cross-linking:

1. Reverse the cross-links between proteins and DNA to dissociate the proteins from the DNA fragments.
2. Typically achieved by heating the samples and treating them with proteinase K to degrade the proteins.
3. Purify the DNA to obtain a sample enriched for DNA fragments associated with the protein of interest.

DNA analysis:

1. Analyze the purified DNA fragments using various techniques, depending on the research goals.
2. PCR amplification: Perform PCR amplification of specific DNA regions using primers targeting known genomic loci or regions of interest.
3. Quantitative real-time PCR (qPCR): Measure the abundance of specific DNA sequences using fluorescently labeled probes or DNA-binding dyes.
4. ChIP-seq: Perform next-generation sequencing (NGS) on the immunoprecipitated DNA fragments to obtain a comprehensive profile of protein-DNA interactions across the genome.

Data interpretation:

1. Analyze and interpret the ChIP data to identify genomic regions bound by the protein of interest.
2. Compare the enriched DNA fragments with a reference control sample (e.g., input DNA) to identify significant peaks.
3. Employ bioinformatics analysis to associate the identified binding sites with genes, functional elements, or specific genomic regions.
4. Determine binding motifs and assess the potential biological implications of the protein-DNA interactions.

DNA footprinting

Preparation of the DNA probe:

1. Select the DNA sequence of interest that contains potential protein-binding sites.
2. Synthesize or PCR amplify the DNA probe using appropriate techniques and primers.
3. Label the DNA probe with a marker, such as a radioactive isotope ([32P]) or a fluorescent dye. The label is typically incorporated during the synthesis or PCR amplification step.

Protein-DNA complex formation:

1. Mix the labeled DNA probe with the protein of interest in a suitable binding reaction buffer.
2. The binding reaction buffer maintains the optimal conditions for protein-DNA interactions, usually containing salts (e.g., magnesium chloride) and stabilizing agents.
3. Incubate the mixture at an appropriate temperature and time to allow the protein and DNA to form stable complexes.

DNAse digestion:

1. Add DNAse I, a nonspecific endonuclease, to the protein-DNA mixture.
2. The DNAse enzyme cleaves the DNA at accessible sites, generating fragments.
3. The DNAse digestion is performed for a limited time and at a controlled enzyme concentration to ensure partial digestion of the DNA.

Stopping the DNAse reaction:

1. Stop the DNAse digestion by adding a stop solution containing EDTA, which chelates divalent metal ions required for DNAse activity.
2. EDTA prevents further DNAse cleavage and stabilizes the DNA fragments.

DNA purification and fragment analysis:

1. Purify the DNA fragments and separate them from the protein-DNA complexes.
2. Common methods for DNA purification include phenol-chloroform extraction or column-based purification kits.
3. Analyze the DNA fragments using gel electrophoresis.
4. Denaturing polyacrylamide gel electrophoresis is often used for higher resolution, especially for shorter DNA fragments (e.g., 50-200 base pairs).
5. Agarose gel electrophoresis can be used for larger DNA fragments (e.g., 200-1000 base pairs).

Visualization and analysis:

1. Visualize the gel using appropriate methods based on the label used for the DNA probe.
2. If the DNA probe is radioactively labeled, expose the gel to an X-ray film or a phosphorimager screen to detect the radioactive signal.
3. If the DNA probe is labeled with a fluorescent dye, scan the gel using a suitable fluorescence imaging system.
4. Analyze the gel image to identify protected and unprotected DNA fragments.
5. The protected DNA fragments correspond to regions where the protein is bound and provides protection against DNAse cleavage, forming a "footprint."
6. The unprotected DNA fragments represent regions where the protein does not bind.

Yeast One-Hybrid (Y1H) Assay

Construction of DNA binding domain (DBD) fusion library:

1. Create a library of DNA binding domain (DBD) fusion proteins.
2. The DBD is a protein domain that specifically recognizes and binds to a particular DNA sequence.
3. The library is generated by fusing different DBDs to a transcriptional activation domain (AD) and cloning them into an expression vector.

Generation of bait DNA:

1. Design and synthesize a DNA fragment containing the target DNA sequence of interest, known as the "bait."
2. The bait DNA is typically a short DNA fragment with the target binding site.

Transformation of yeast:

1. Introduce the bait DNA into a yeast strain that lacks the corresponding endogenous binding site.
2. This yeast strain also contains a reporter gene (e.g., a selectable marker or a reporter protein) under the control of a promoter containing the target DNA sequence.

Introduction of the DBD fusion library into yeast:

1. Co-transform the yeast strain with the DBD fusion library.
2. The DBD fusion proteins expressed from the library will bind to the bait DNA if their specific DBD recognizes the target DNA sequence.

Selection and screening:

1. Grow the transformed yeast cells on selective media that supports the growth of only those cells where the DBD fusion protein binds to the bait DNA.
2. This selection ensures that only cells with specific DBD-bait DNA interactions survive.
3. Identify the DBD fusion proteins that interact with the bait DNA by examining the growth or expression of the reporter gene.

Verification:

1. Confirm the interaction between the identified DBD fusion proteins and the bait DNA through additional assays, such as gel shift assays or DNA sequencing.
2. Further characterization of the interaction can be performed using additional experiments or techniques, such as mutant bait DNA constructs or additional control experiments.

Yeast Two-Hybrid (Y2H) Assay:

Construction of protein interaction domain (PID) fusion library:

1. Create a library of protein interaction domain (PID) fusion proteins.
2. The PID is a protein domain involved in protein-protein interactions.
3. The library is generated by fusing different PIDs to a transcriptional activation domain (AD) and cloning them into an expression vector.

Construction of bait and prey plasmids:

1. Design and clone the DNA sequence encoding the "bait" protein of interest into a plasmid, typically fused to a DNA binding domain (DBD).
2. Clone the DNA sequence encoding the "prey" protein of interest into a separate plasmid, usually fused to an activation domain (AD).
3. The bait and prey plasmids serve as the sources of interacting proteins in the Y2H assay.

Co-transformation of yeast:

1. Co-transform yeast cells with the bait and prey plasmids.
2. The bait and prey proteins are produced in the same yeast cell, and if they interact, they bring the DBD and AD together, activating the reporter gene.

Selection and screening:

1. Grow the transformed yeast cells on selective media that supports the growth of only those cells where the bait and prey proteins interact.
2. This selection ensures that only cells with interacting proteins survive.
3. Identify protein-protein interactions by examining the growth or expression of a reporter gene, typically a gene whose expression is controlled by a promoter recognized by the DBD-AD interaction.

Verification:

1. Confirm the protein-protein interactions using additional assays, such as co-immunoprecipitation or co-localization studies.
2. Further characterization of the interactions can be performed using additional experiments, such as testing for interaction specificity, exploring the binding strength, or examining the functional consequences of the interactions.

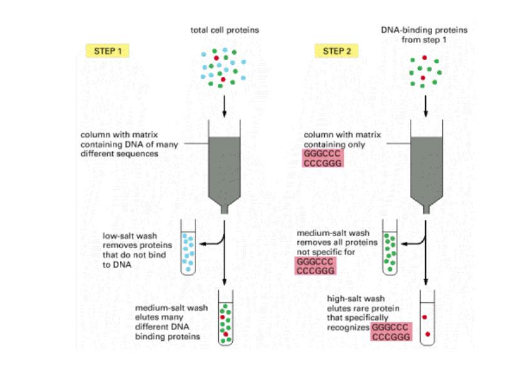

 DNA Affinity Chromatography technique

Design and synthesis of DNA probe:

1. Identify the DNA sequence of interest, usually a specific DNA-binding site or motif recognized by a protein of interest.
2. Design and synthesize a DNA probe that contains the target DNA sequence.
3. The DNA probe is typically labeled with a tag or a marker for detection purposes.

Preparation of the DNA affinity resin:

1. Covalently attach the DNA probe to a solid support or matrix, such as agarose beads or magnetic beads.
2. Activate the solid support with a suitable chemical linker, such as cyanogen bromide (CNBr) or N-hydroxysuccinimide (NHS).
3. Couple the activated solid support to the DNA probe through specific chemical reactions, forming a stable covalent linkage.

Preparation of the cell or tissue extract:

1. Isolate the cell or tissue of interest and prepare the extract by disrupting the cells and releasing their proteins.
2. Use suitable lysis buffers and protease inhibitors to maintain the integrity of the protein complexes.

Binding of proteins to the DNA affinity resin:

1. Incubate the cell or tissue extract with the DNA affinity resin containing the immobilized DNA probe.
2. Allow sufficient time for the protein-DNA interactions to occur.
3. The protein(s) of interest in the extract bind specifically to the immobilized DNA probe, while other non-specific proteins are washed away.

Washing and elution:

1. Wash the DNA affinity resin extensively to remove non-specifically bound proteins and contaminants.
2. Use buffers with varying stringencies, including salt concentration, pH, or detergents, to optimize the removal of non-specific proteins.
3. Elute the protein(s) of interest by disrupting the protein-DNA interactions using specific elution conditions.
4. This can include altering the buffer conditions or using a competitive DNA molecule that outcompetes the protein from binding to the DNA probe.

Protein analysis and characterization:

1. Concentrate and purify the eluted protein(s) for downstream analysis.
2. Perform techniques such as SDS-PAGE (Sodium Dodecyl Sulfate-Polyacrylamide Gel Electrophoresis) to separate and visualize the proteins based on their molecular weight.
3. Use Western blotting or other immunological techniques to detect specific proteins using antibodies.
4. Employ mass spectrometry or other proteomic methods to identify and characterize the eluted proteins.

Fluorescence Resonance Energy Transfer (FRET) technique

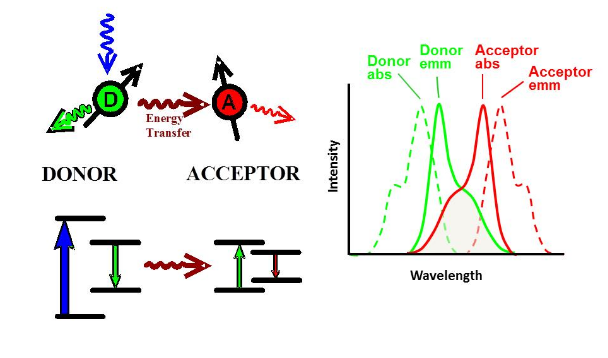

Principle of FRET:

1. FRET is a phenomenon that occurs between two fluorophores, a donor fluorophore, and an acceptor fluorophore when they are in close proximity.
2. The energy from the excited state of the donor fluorophore is transferred to the acceptor fluorophore through non-radiative dipole-dipole coupling.
3. FRET is highly dependent on the distance between the donor and acceptor, with efficient energy transfer occurring within a range of 1 to 10 nanometers.

Selection of fluorophores:

1. Choose a suitable pair of fluorophores for FRET analysis.
2. The donor fluorophore should have an emission spectrum that overlaps with the absorption spectrum of the acceptor fluorophore.
3. Common donor-acceptor fluorophore pairs include Cyan Fluorescent Protein (CFP) and Yellow Fluorescent Protein (YFP), or Green Fluorescent Protein (GFP) and Red Fluorescent Protein (RFP).

Design and preparation of FRET constructs

1. Modify the molecules or proteins of interest by attaching the donor fluorophore to one molecule and the acceptor fluorophore to another.
2. This can be achieved through genetic fusion, chemical conjugation, or other labeling techniques.
3. The donor and acceptor fluorophores should be positioned in close proximity when the molecules or proteins interact or undergo conformational changes.

Experimental setup and measurement:

1. Excite the donor fluorophore using an appropriate excitation wavelength that corresponds to its absorption peak.
2. Monitor the fluorescence emission from both the donor and acceptor fluorophores.
3. Collect the emission signals using suitable detectors, such as a spectrophotometer or a confocal microscope.

Data analysis and interpretation:

1. Calculate the FRET efficiency, which is the fraction of energy transferred from the donor to the acceptor, using appropriate formulas.
2. FRET efficiency is influenced by factors such as the distance between the fluorophores, their orientation, and the spectral overlap between the donor emission and acceptor absorption.
3. Analyze the FRET efficiency to infer information about molecular interactions, conformational changes, or proximity between the molecules or proteins of interest.
4. Additional controls, such as negative controls (lacking FRET constructs) and positive controls (known FRET interactions), can be included to validate the FRET measurements.

Advanced FRET applications:

1. Time-resolved FRET (TR-FRET) can be employed to study dynamic interactions and molecular kinetics by measuring the fluorescence lifetimes of the donor and acceptor fluorophores.
2. Fluorescence Lifetime Imaging Microscopy (FLIM) allows spatial visualization and mapping of FRET efficiency within biological samples.
3. FRET can be combined with other techniques, such as fluorescence correlation spectroscopy (FCS) or fluorescence anisotropy measurements, to gain further insights into molecular interactions and dynamics.
